GDONU300-1001 XPON HGU 1GE+CATV

GDONU300-1001 is a residential gateway device with routing functions for XPON ONU and LAN Switch for residential and SOHO ...

Current position:HOME > PON

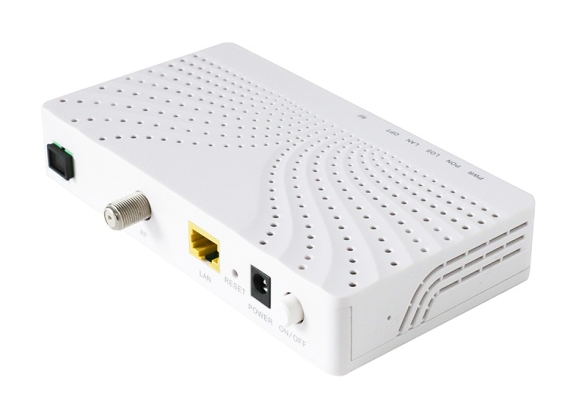

GDONU300-1001 XPON HGU 1GE+CATV

Overview        GDONU300-1001 is a residential gateway device with routing functions for XPON ONU and LAN Switch for residential and SOHO users, which is in line with ITU-T G.984 and IEEE802.3ah.
       The uplink of GDONU300-1001 provides one PON interface, while downlink provides one Ethernet and RF interface. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers. Features         Compliance with IEEE 802.3ah(EPON) & ITU-T G.984.x(GPON) standard
        Support IPV4 & IPV6 Management and transmission
        Support TR-069 remote configuration and maintenance
        Support Layer 3 gateway with hardware NAT
        Support Multiple WAN with Route/Bridge mode
        Support Layer 2 802.1Q VLAN, 802.1P QoS,ACL etc
        Support IGMP V2 and MLD proxy/ snooping
        Support DDSN, ALG, DMZ, Firewall and UPNP service
        Support CATV interface for video service
        Support bi-directional FEC Highlights         Support docking compatibility with OLT of various manufacturers
        Support automatically adapt to the EPON or GPON mode used by the peer OLT
        Support multiple wan configuration
        Support WAN PPPoE/DHCP/Static IP/Bridge mode.
        Support CATV video service
        Support fast transmission of hardware NAT Hardware Specifications         interface: 1* G/EPON+1*GE+1*RF
        Power adapter input: 100V-240V AC, 50Hz-60Hz
        Power Supply: DC 12V/1A
        Indicator light: POWER/PON/LOS/LAN1//RF/OPT
        Button: Power switch Button, Reset Button
        Power Consumption: 小于18W
        Working temperature: -20℃~+55℃
        Environment humidity: 5% ~ 95% (non-condensing)
        Dimension:157mm x 86mm x 28mm(L×W×H Without antenna)
        Net Weight:0.15Kg PON Interface         Interface Type: SC/APC, CLASS B+
        Transmission distance: 0~20km
        Working wavelength: Up 1310nm;Down 1490nm;CATV 1550nm
        RX Optical power sensitivity: -27dBm
        Transmission rate: GPON: Up 1.244Gbps;Down 2.488Gbps;EPON: Up 1.244Gbps;Down 1.244Gbps Ethernet Interface         Interface type:1* RJ45
        Interface parameters: 10/100/1000BASE-T CATV Interface         Interface type: 1*RF
        Optical receiving wavelength: 1550nm
        RF output level : 80±1.5dBuV
        Input optical power: +2~-15dBm
        AGC range: 0~-12dBm
        Optical reflection loss: >14
        MER: >31@-15dBm Packing list         ONU * 1 PC
        Power adaptor *1 PC
        Network cable *1 PC

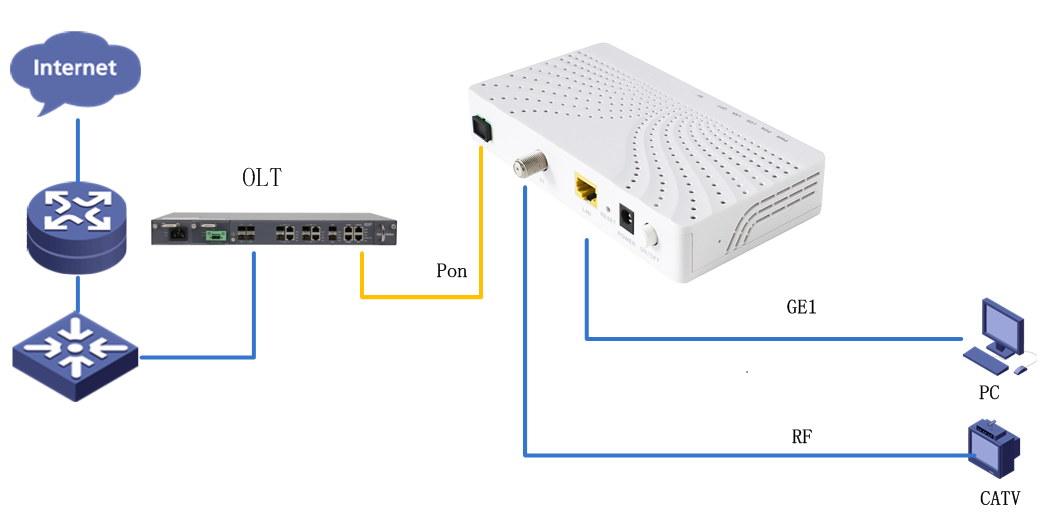

        Box *1 PC Application Scenario
